Product Description

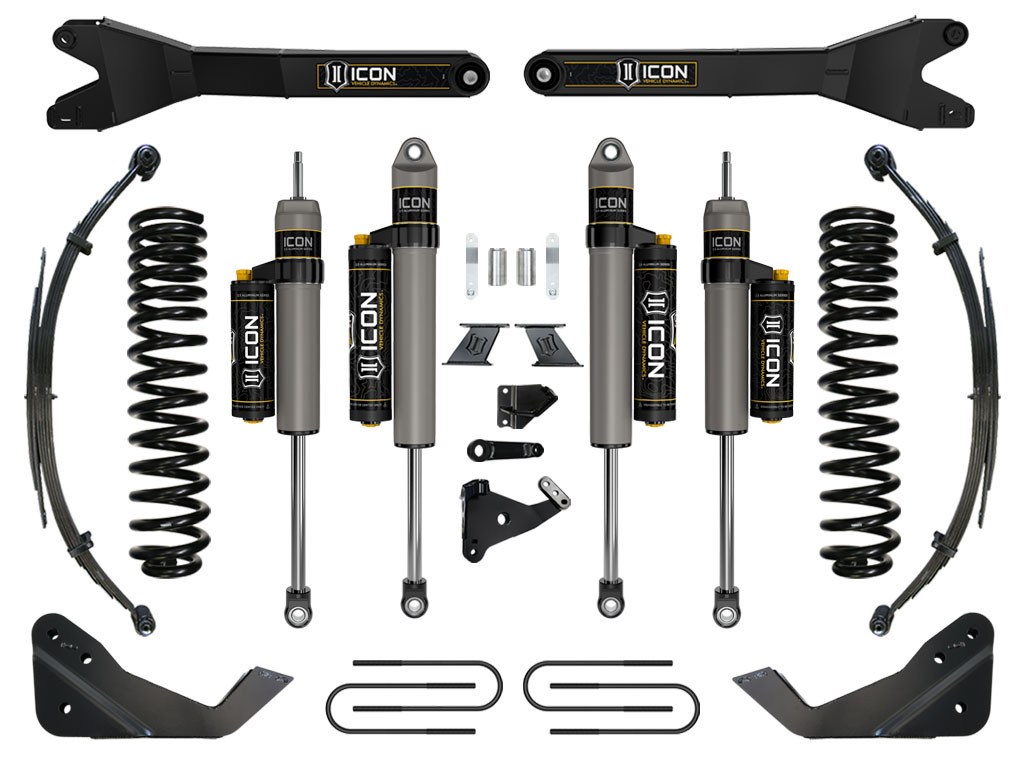

This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2005-2007 Ford F250/350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and provides ultimate performance for extreme off-road adventure. ICON's 7" Stage 5 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, ICON CDC Valve 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Features & Benefits:
- Approximately 50% increased front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and re-valvable
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Progressive leaf springs improve ride quality without reducing towing capacity
- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK
- Ships in multiple boxes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
- APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
- APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
Additional Attributes:
- GTIN: 00840103418896
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 7
- 7325: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- California Prop 65 Warning: Yes
- Dual Rate Coil Springs: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 48.0000 x 48.0000 x 10.0000 inches
I67720CP_REVA
