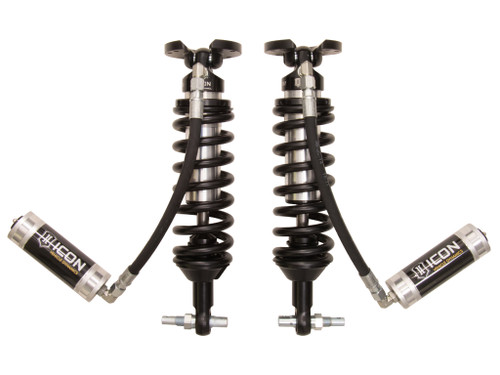

07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT - 71555C

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms.
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
TECH NOTE: Not compatible with Hybrid models

GTIN: 00840103406008
10107: 650
10527: Yes
10528: Yes
10530: Passive
10535: 2.5
2064: Steel
2329: Steel
306: Yes
3085: Single Tube
3096: Black
3390: Performance
7233: No
8703: No
9476: Yes
9783: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Damping: Yes
Body Diameter: 2.5
California Prop 65 Warning: Yes
Coil Over Springs Included: Yes
Compressed Length: 15.27
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Manual
Damping Type: Oil
Extended Length: 19.94
Gas Charged: yes
Lower Mount Type: BAR PIN
Material: Aluminum
Maximum Lift: 2.5
Minimum Lift: 1
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Rate Type: Linear
Travel Length: 4.67
Upper Mount Type: Mounting Plate
Valving Type: Digressive
