Product Description

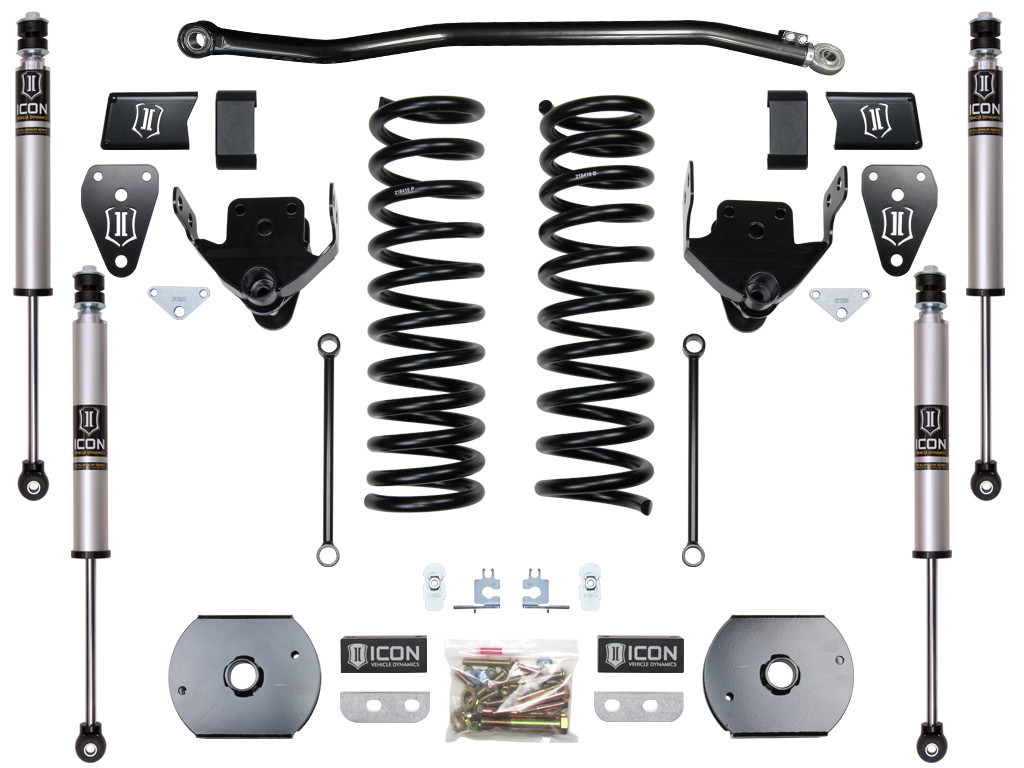

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-UP Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use.Features & Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
- Ships in Multiple Boxes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
- APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211
Additional Attributes:
- GTIN: 00840103415574
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 4.5
- 7325: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- California Prop 65 Warning: Yes
- Dual Rate Coil Springs: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 19.0000 x 10.0000 inches
I216531_REVB
