Product Description

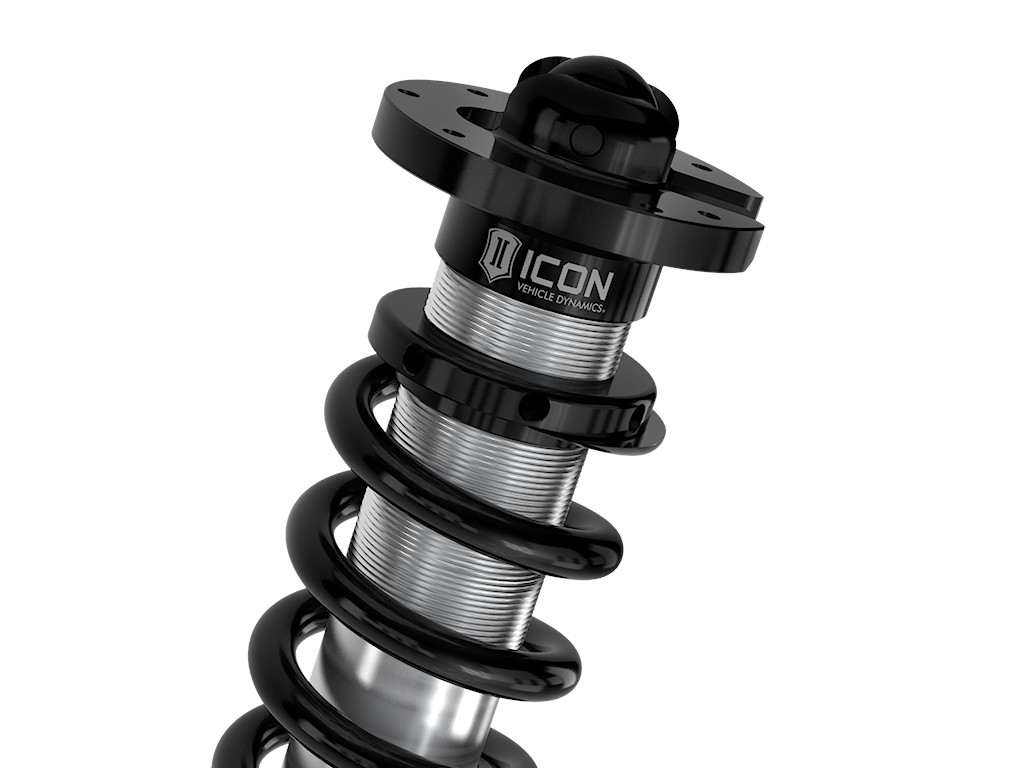

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.Features & Benefits:
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable ride height offers 1-3" of front lift over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
- APPLICATION NOTE #142: NOT COMPATIBLE WITH VEHICLES EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
Additional Attributes:
- GTIN: 00840103423524
- 10107: 550
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3
- 2064: Steel
- 2329: Steel
- 306: Yes
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: No
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: No
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 19
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 25.46
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 1
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Reservoir Style: Internal
- Self-Leveling: No
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Center of Eyelet
- Shock Absorber Rod End Measuring Point: Top of Mounting Plate
- Spring Rate Type: Linear
- Travel Length: 6.46
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
