Product Description

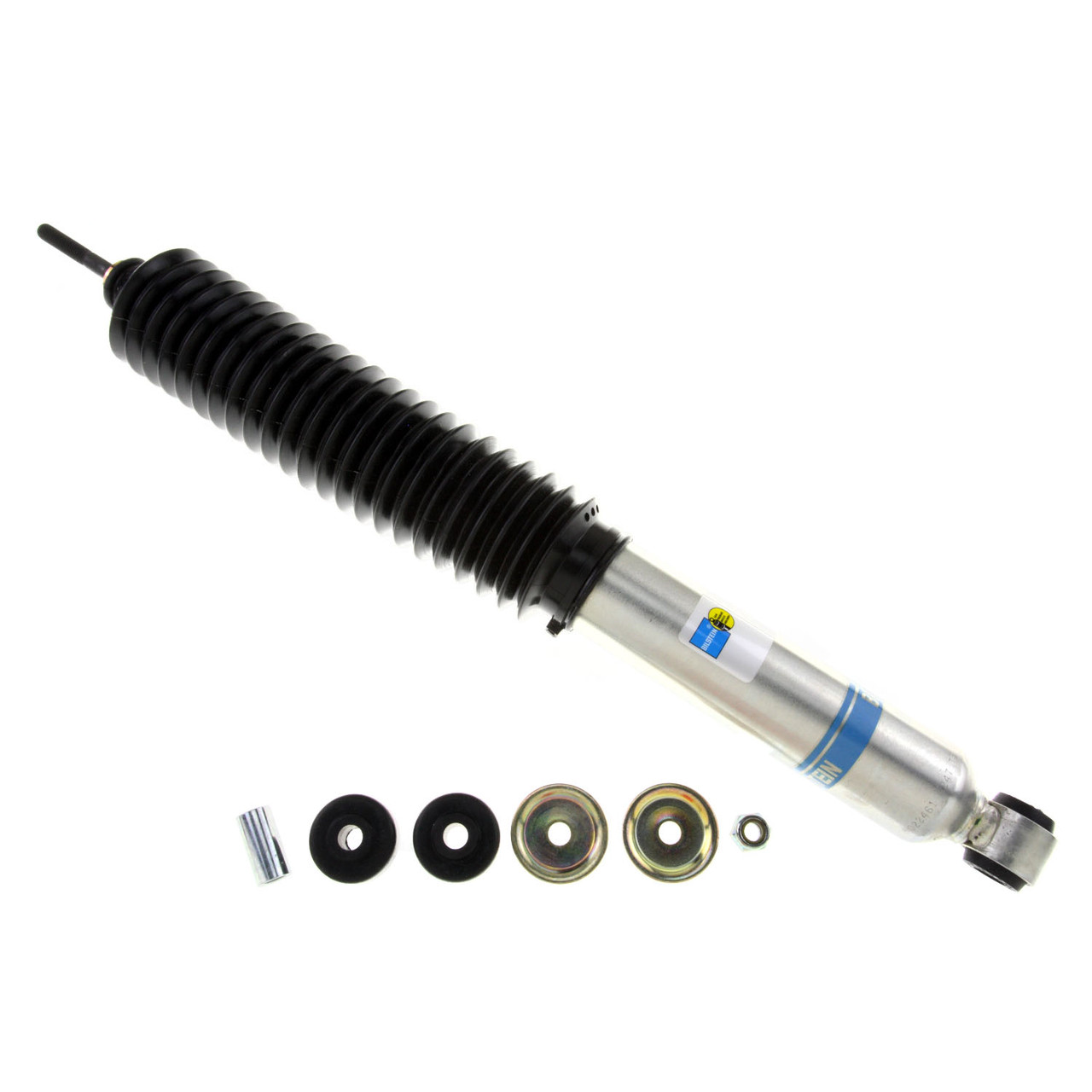

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.Features & Benefits:
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
Additional Attributes:
- GTIN: 00651860696980
- Body Design: Smooth Body (Non-Coilover)
- Boot Included: Black Bellows
- Collapsed Length (IN): 13.03
- Collapsed Length (MM): 331.0
- Compression @0.52m/s: 1495
- Extended Length (IN): 20.69
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 5/8in
- PartType: Shocks / Struts
- Rebound @0.52m/s: 3265
- Reservoir: No
- Segment: Light Truck
- Series: B8 5125
- Shaft Diameter: 14mm
- Spring Seat Included: No
- Stroke/Travel Length (IN): 7.66
- Stroke/Travel Length (mm): 194.6
- Upper Mount Type: Stem
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
