Product Description

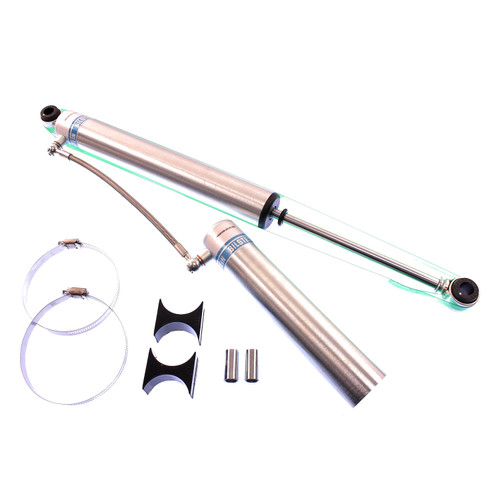

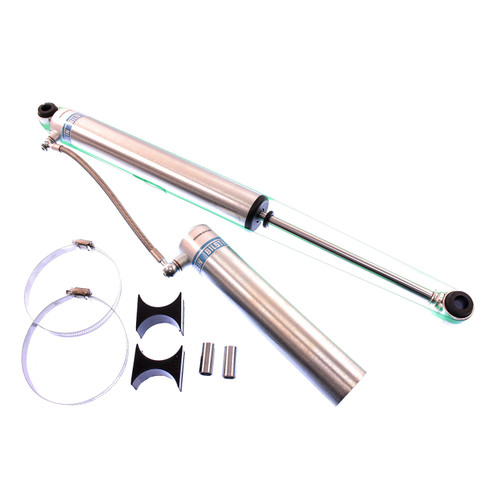

Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.Features & Benefits:
- Race inspired fixed CrossFlow reservoir
- Adjustable shock mount allows unlimited reservoir positioning
- Advanced design splut valving
Additional Attributes:
- GTIN: 00651860467214
- Body Design: 46mm ID Smooth Body (Non-Coilover)
- Boot Included: No
- Collapsed Length (IN): 15.89
- Collapsed Length (MM): 403.5
- Compression @0.52m/s: 740
- Extended Length (IN): 25.91
- Extended Length (MM): 658.0
- Finish: Platinum Powder coat
- Internal Design: Monotube
- Lower Mount Type: Eye 5/8in
- PartType: Shocks / Struts
- Rebound @0.52m/s: 2665
- Reservoir: Yes
- Segment: Light Truck
- Series: B8 5150
- Shaft Diameter: 14mm
- Spring Seat Included: No
- Stroke/Travel Length (IN): 10.02
- Stroke/Travel Length (mm): 254.5
- Upper Mount Type: Eye 5/8in
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Superseded
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 3.5500 x 3.5500 inches
