Product Description

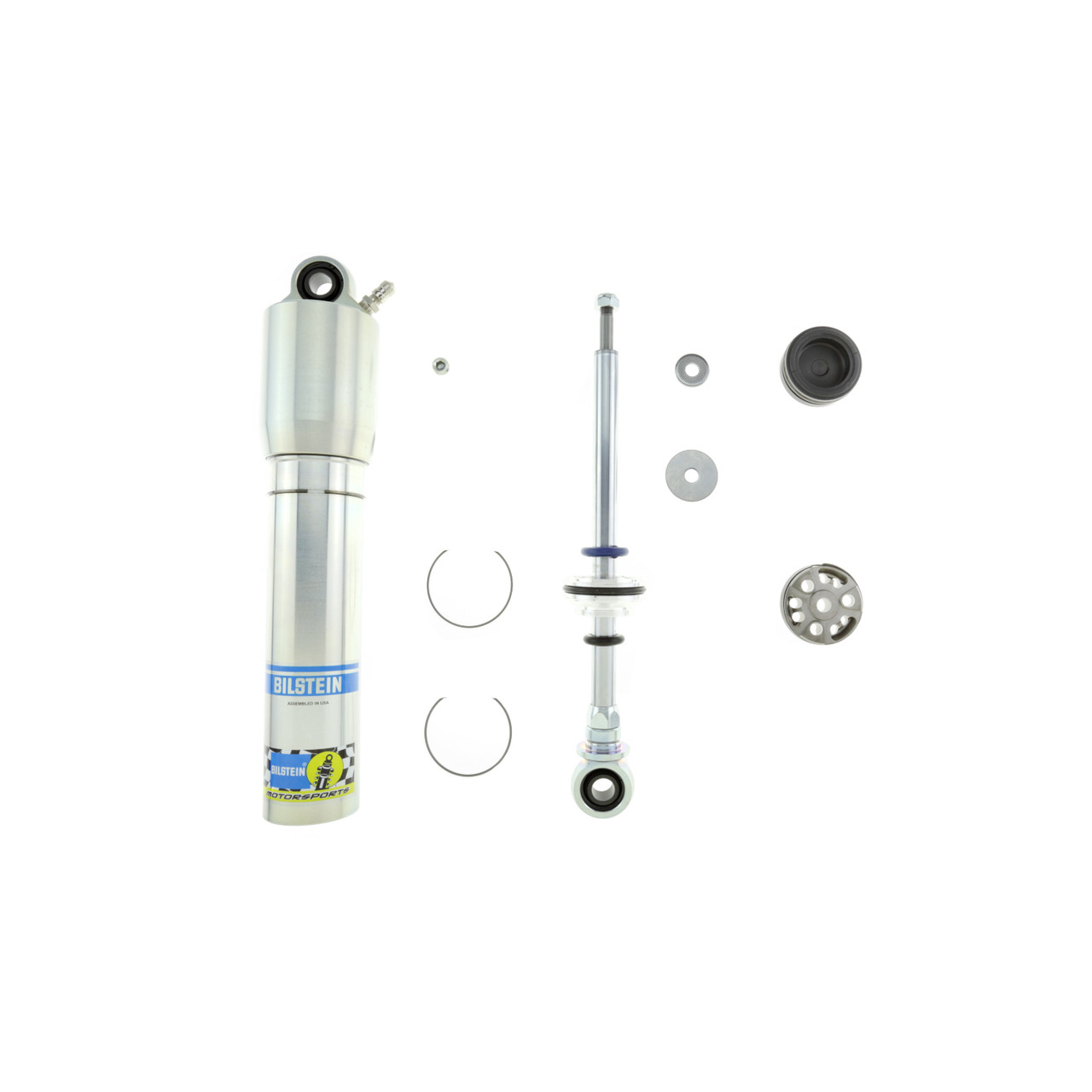

Bilstein XVS Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable with an available fill plug tool (sold separately). The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.Features & Benefits:
- 46mm extruded aluminum threaded body improves durability and heat dissipation
- Dual-zone gas bulb decreases gas pressure while increasing grip levels
- Optimized floating piston improves driver feel and response
Additional Attributes:
- GTIN: 00651860737584
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 13.35
- Collapsed Length (MM): 339.0
- Extended Length (IN): 20.04
- Extended Length (MM): 509.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Piston Type: Digressive
- Segment: Motorsports
- Series: XVS Series
- Shaft Diameter: 14mm
- Spring Hardware: B4-BOA-0000117
- Spring Seat Included: No
- Stroke/Travel Length (IN): 6.69
- Stroke/Travel Length (mm): 169.9
- Upper Mount Type: 1/2in Heim
- Valving Identifier: Digressive Dry Kit (no valving)
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
