Product Description

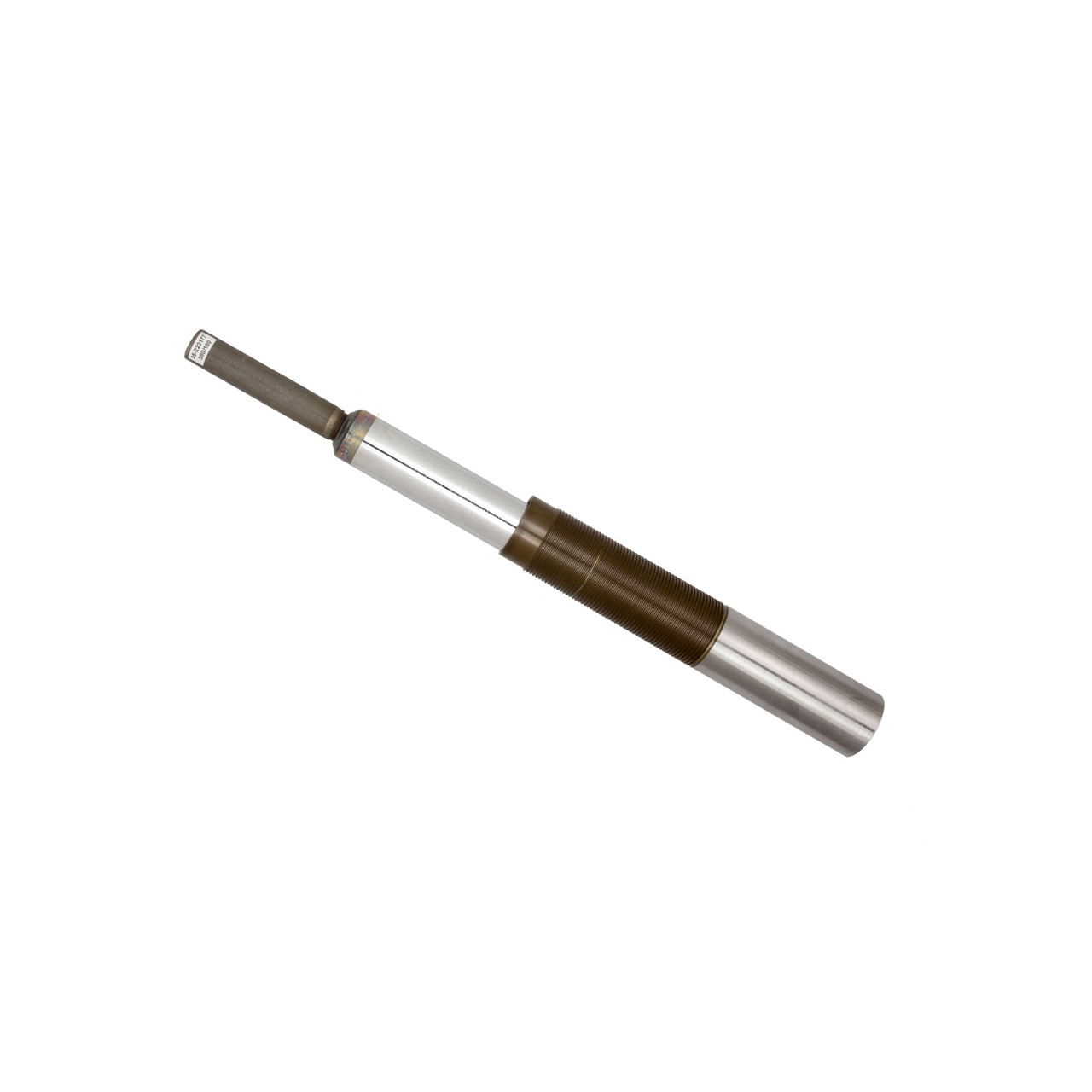

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.Features & Benefits:
- Large 46mm linear piston with precise valving profiles
- 50mm OD, hard-chromed strut insert tube for strength
- 14mm piston rod for added side-load support
Additional Attributes:
- GTIN: 00651860705552
- Adjustable Damping: Non-Adjustable
- Body Design: Threaded Body (Coilover)
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 11.32
- Collapsed Length (MM): 287.6
- Compression @0.52m/s: 1700
- Extended Length (IN): 16.91
- Extended Length (MM): 429.4
- Finish: Olive-Drab Zinc
- Internal Design: Monotube
- Lower Mount Type: Housing
- PartType: Shocks / Struts
- Piston Diameter: 36mm
- Piston Type: Digressive
- Rebound @0.52m/s: 3785
- Segment: Motorsports
- Series: Universal Motorsports Strut
- Shaft Diameter: 14mm
- Spring Hardware: N/A
- Spring Seat Included: No
- Stroke/Travel Length (IN): 5.59
- Stroke/Travel Length (mm): 142.0
- Upper Mount Type: Stem
- Valving Identifier: 380/180
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 4.1500 x 4.1500 inches
