Product Description

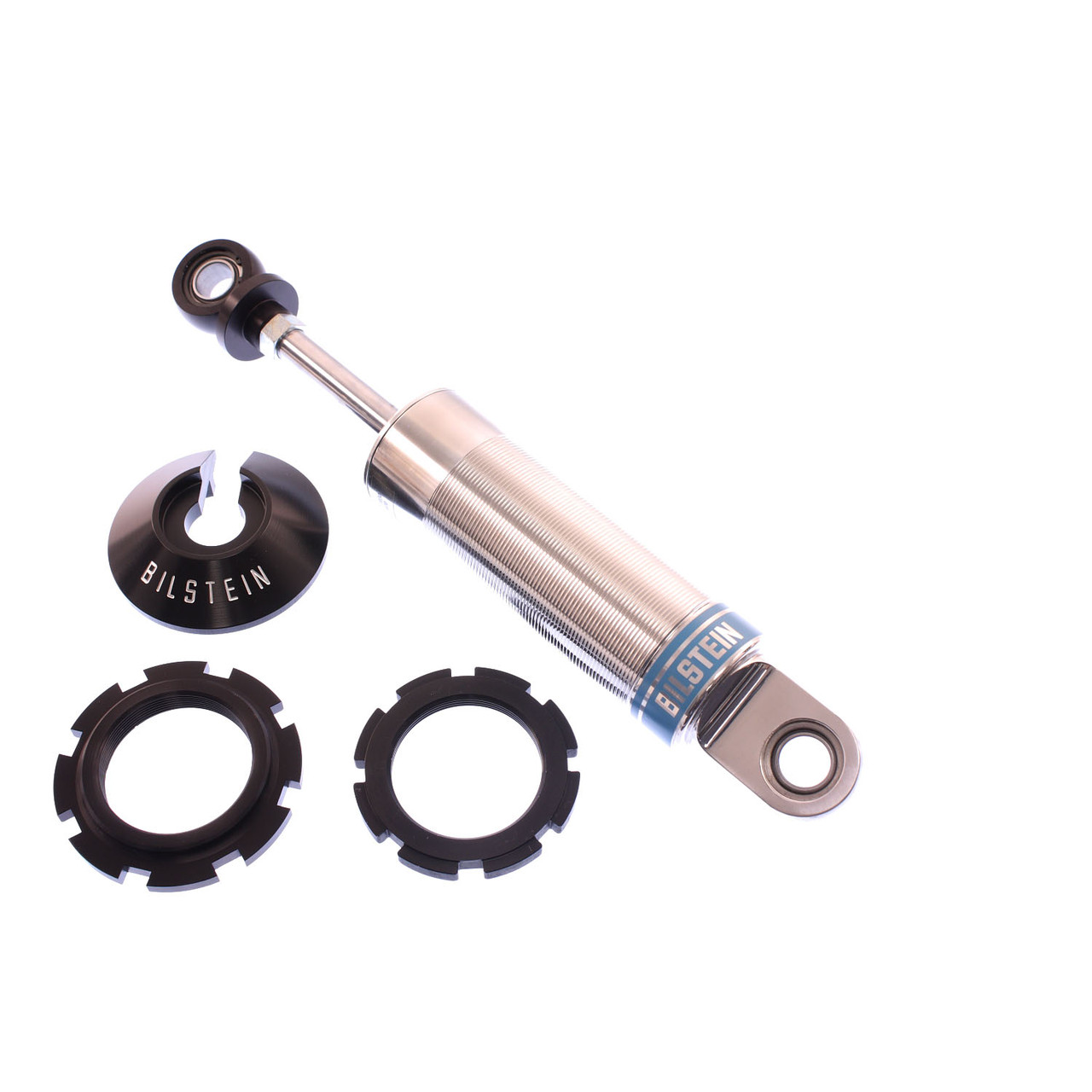

Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.Features & Benefits:
- Designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup
- Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from
- Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring
Additional Attributes:
- GTIN: 00651860597270
- Boot Included: No
- Collapsed Length (IN): 9.25
- Collapsed Length (MM): 235.0
- Compression @0.52m/s: 640
- Extended Length (IN): 11.95
- Extended Length (MM): 303.5
- Finish: Polished Aluminum
- Internal Design: Monotube
- Lower Mount Type: 15.9mm Heim
- PartType: Shocks / Struts
- Position: Front
- Rebound @0.52m/s: 1750
- Recommended Mounting Length (IN): 10.50
- Segment: Tuning
- Series: CA5 Series
- Spring Seat Included: Yes
- Upper Mount Type: 15.9mm Heim
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 19.7500 x 5.2500 x 2.7500 inches
