Product Description

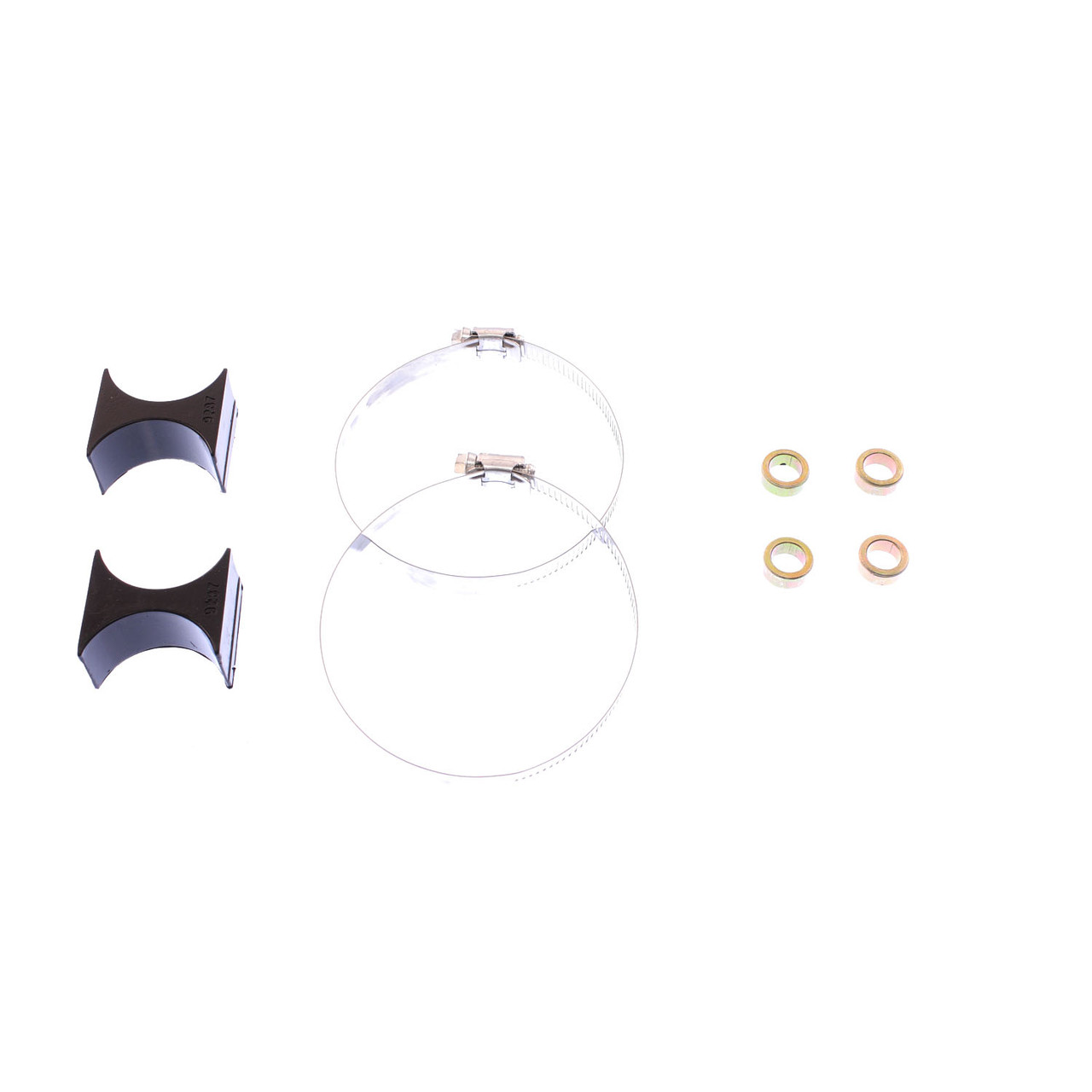

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.Features & Benefits:
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
Additional Attributes:
- GTIN: 00790832510371
- Body Design: Smooth Body (Non-Coilover)
- Collapsed Length (IN): 14.06
- Collapsed Length (MM): 357.1
- Compression @0.52m/s: 780
- Extended Length (IN): 22.29
- Extended Length (MM): 566.2
- Finish: Nickel Plated with Clear Powder Coat
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Rebound @0.52m/s: 2750
- Reservoir: Yes
- Segment: Motorsports
- Series: M 7100
- Shaft Diameter (mm): 14.0
- Spring Seat Included: No
- Stroke/Travel Length (IN): 8.23
- Stroke/Travel Length (mm): 209.0
- Upper Mount Type: 1/2in Heim
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 37.0000 x 7.0000 x 2.0000 inches
