Product Description

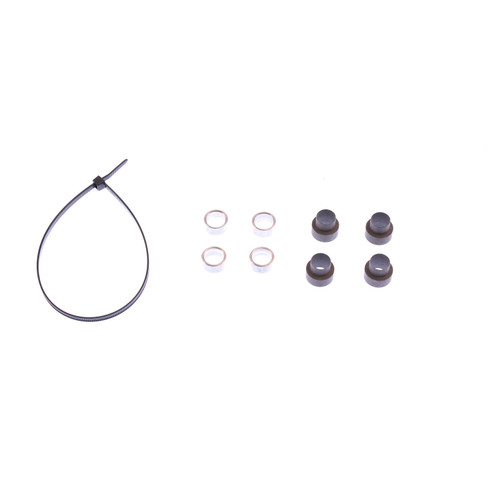

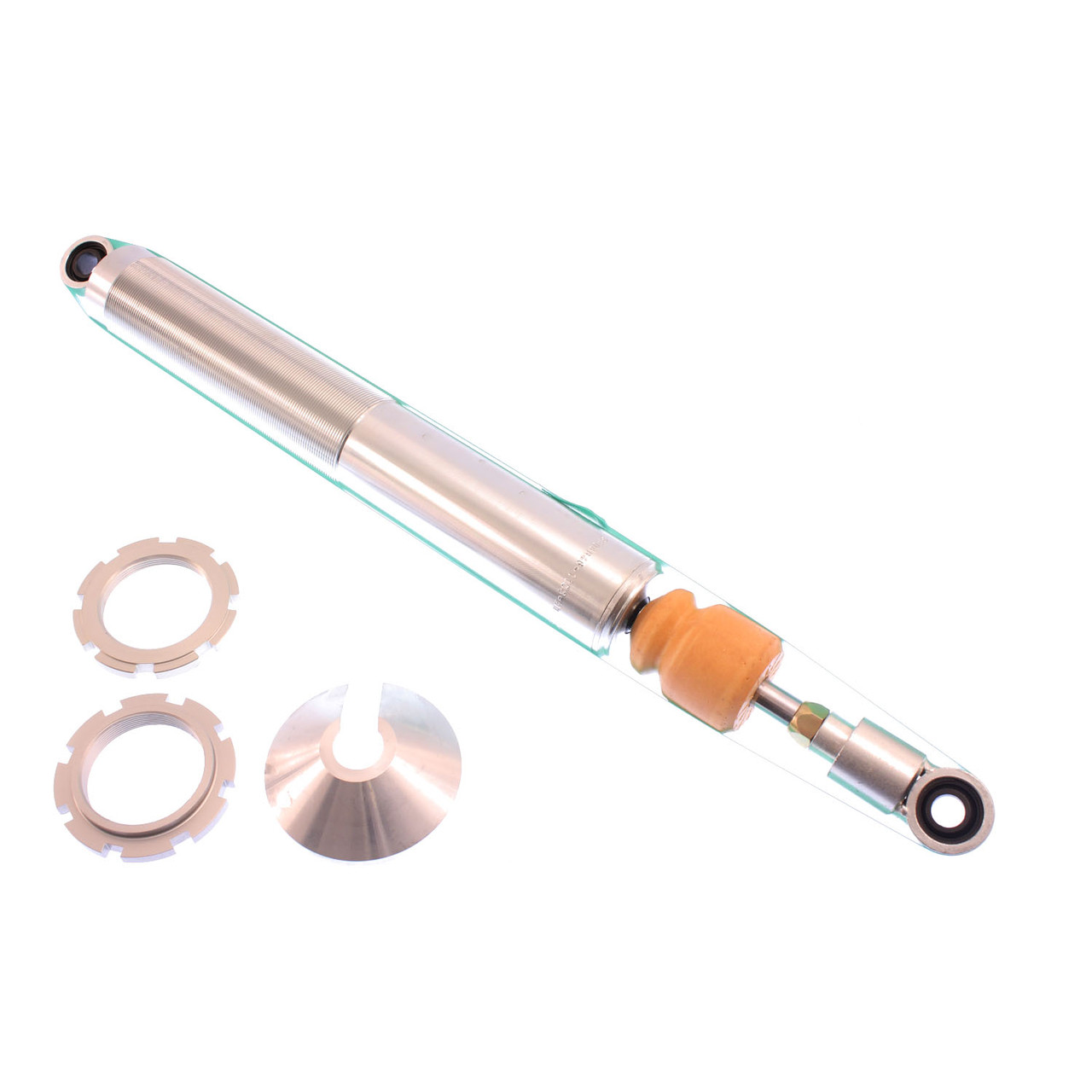

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.Features & Benefits:
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Additional Attributes:
- GTIN: 00651860570327
- Body Design: Threaded Body (Coilover)
- Collapsed Length (IN): 17.60
- Collapsed Length (MM): 447.0
- Compression @0.52m/s: 1020
- Extended Length (IN): 26.87
- Extended Length (MM): 682.5
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Rebound @0.52m/s: 2590
- Reservoir: No
- Segment: Motorsports
- Series: M 7100 Classic (Coilover)
- Shaft Diameter (mm): 14.0
- Spring Hardware: Single Rate (2.5in)
- Spring Seat Included: Yes
- Stroke/Travel Length (IN): 9.27
- Stroke/Travel Length (mm): 235.5
- Upper Mount Type: 1/2in Heim
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
