Product Description

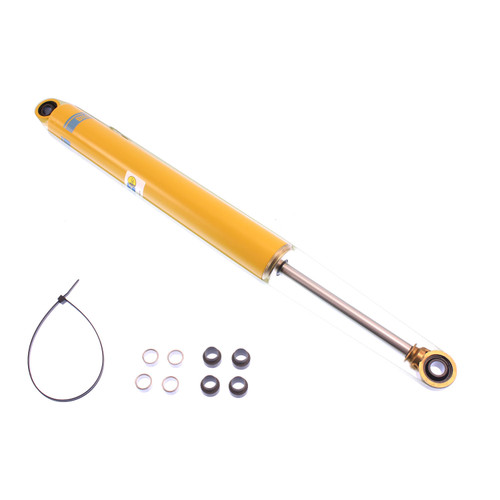

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.Features & Benefits:
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Additional Attributes:
- GTIN: 00651860468891
- Body Design: 46mm ID Smooth Body (Non-Coilover)
- Boot Included: No
- Collapsed Length (IN): 19.57
- Collapsed Length (MM): 497.0
- Compression @0.52m/s: 640
- Extended Length (IN): 31.10
- Extended Length (MM): 790.0
- Finish: Yellow Paint
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Rebound @0.52m/s: 1750
- Reservoir: No
- Segment: Motorsports
- Series: M 7100 Classic
- Shaft Diameter: 14mm
- Spring Seat Included: No
- Stroke/Travel Length (IN): 11.53
- Stroke/Travel Length (mm): 292.9
- Upper Mount Type: 1/2in Heim
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.7500 x 4.9000 x 2.5500 inches
USA SDS_Shock_Air Spring_V2_EN
Generic_instructions_02
