Product Description

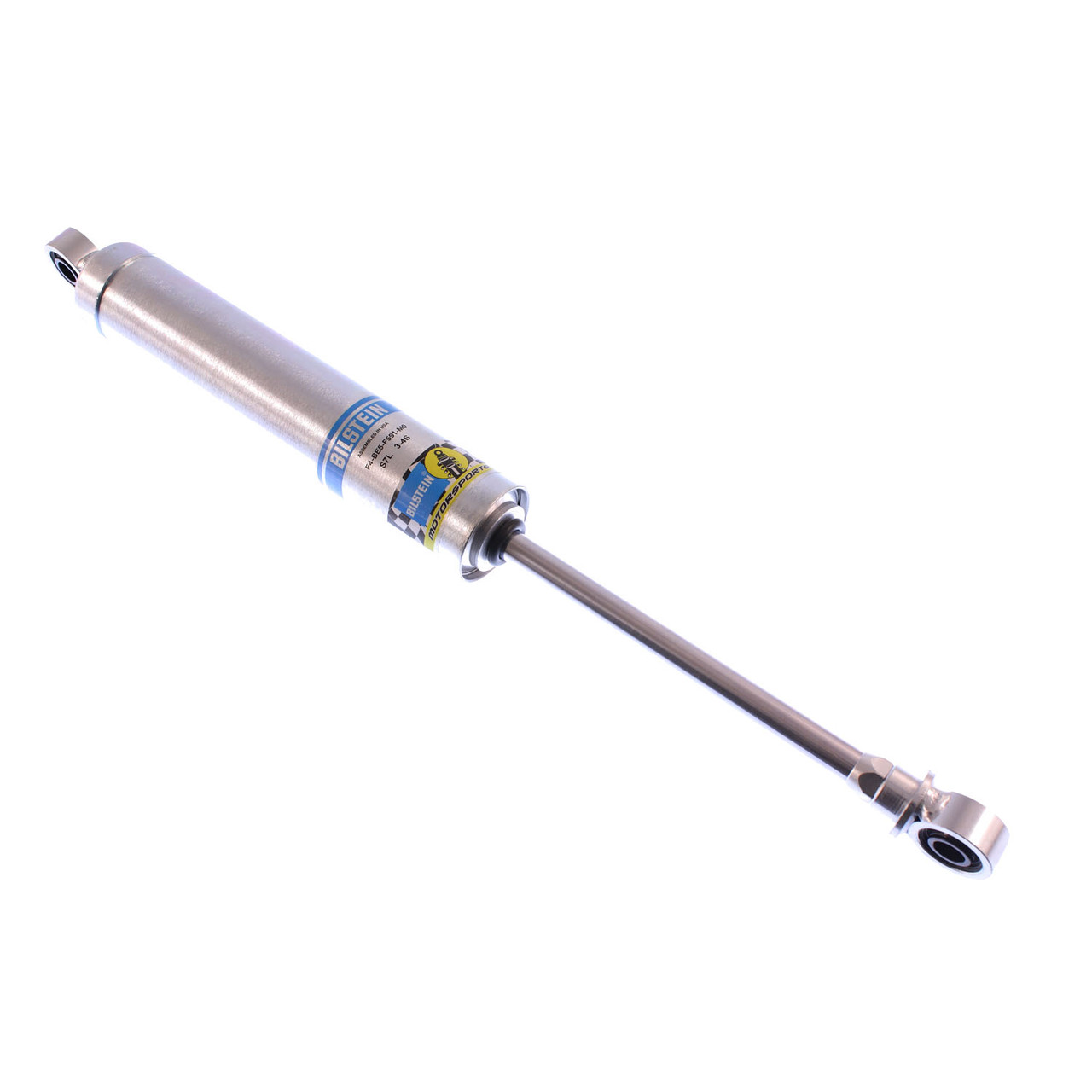

Bilstein SLS Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). SLS Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.Features & Benefits:
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Additional Attributes:
- GTIN: 00651860623481
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Body Material: Steel
- Boot Included: No
- Collapsed Length (IN): 13.15
- Collapsed Length (MM): 334.0
- Compression @0.26m/s: 1240
- Extended Length (IN): 20.08
- Extended Length (MM): 510.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Piston Type: Linear
- Rebound @0.26m/s: 740
- Segment: Motorsports
- Series: SLS Series
- Shaft Diameter: 14mm
- Spring Hardware: B4-BOA-0000117
- Spring Seat Included: No
- Stroke/Travel Length (IN): 6.93
- Stroke/Travel Length (mm): 176.0
- Upper Mount Type: 1/2in Heim
- Valving Identifier: 3-5S
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 22.4500 x 2.9500 x 2.9500 inches
