Product Description

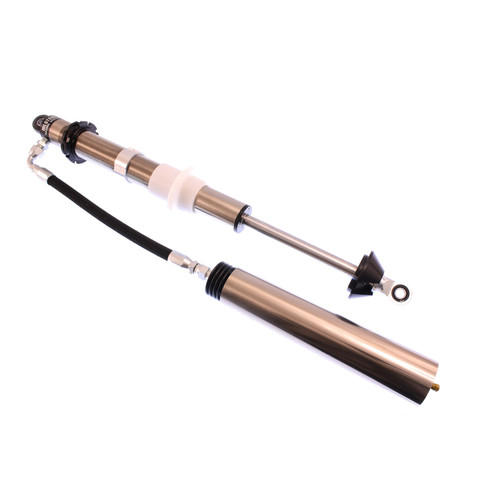

Bilstein M 9300 (Coilover) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.Features & Benefits:
- Available in 46mm and 60mm monotubes
- Threaded body with dual rate coilover hardware
- 5/8" uniball mounts with 1/2" step spacers
Additional Attributes:
- GTIN: 00790832526716
- Body Design: Threaded Body Screw Top (Coilover)
- Collapsed Length (IN): 27.19
- Collapsed Length (MM): 690.6
- Compression @0.52m/s: Custom
- Extended Length (IN): 40.59
- Extended Length (MM): 1031.0
- Finish: Nickel Plated
- Internal Design: Monotube
- Lower Mount Type: 3/4in Heim
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Piston Diameter: 60mm
- Rebound @0.52m/s: Custom
- Reservoir: Yes
- Segment: Motorsports
- Series: M 9300 (Coilover)
- Shaft Diameter (mm): 22.0
- Spring Seat Included: Yes
- Stroke/Travel Length (IN): 13.40
- Stroke/Travel Length (mm): 340.4
- Upper Mount Type: 3/4in Heim
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Discontinued
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 38.2500 x 16.7500 x 9.7500 inches
