Product Description

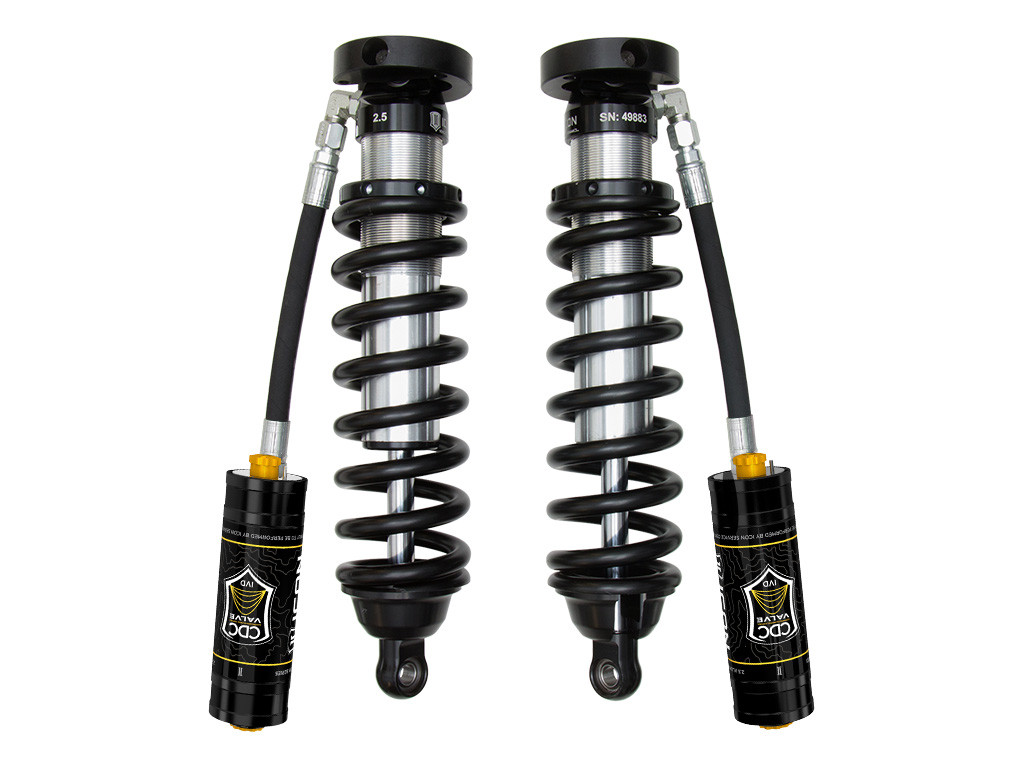

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 1996-2002 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.Features & Benefits:
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- ICON CDCV equipped for external tunability of your shocks
- Height-adjustable coilovers offer 0-3" of lift height
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- FK Rod End bearings for extended longevity and minimal deflection
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
- APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
Additional Attributes:
- GTIN: 00840103404202
- 10107: 650
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10535: 3
- 2064: Steel
- 2329: Steel
- 306: Yes
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 158508 - COIL SPRING 1400.0300.0700 BLACK
- Adjustable Damping: Yes
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 14.5
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Extended Length: 19.85
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate: 650
- Spring Rate Type: Linear
- Travel Length: 5.36
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 8.0000 inches
I58716C_REVB
