Product Description

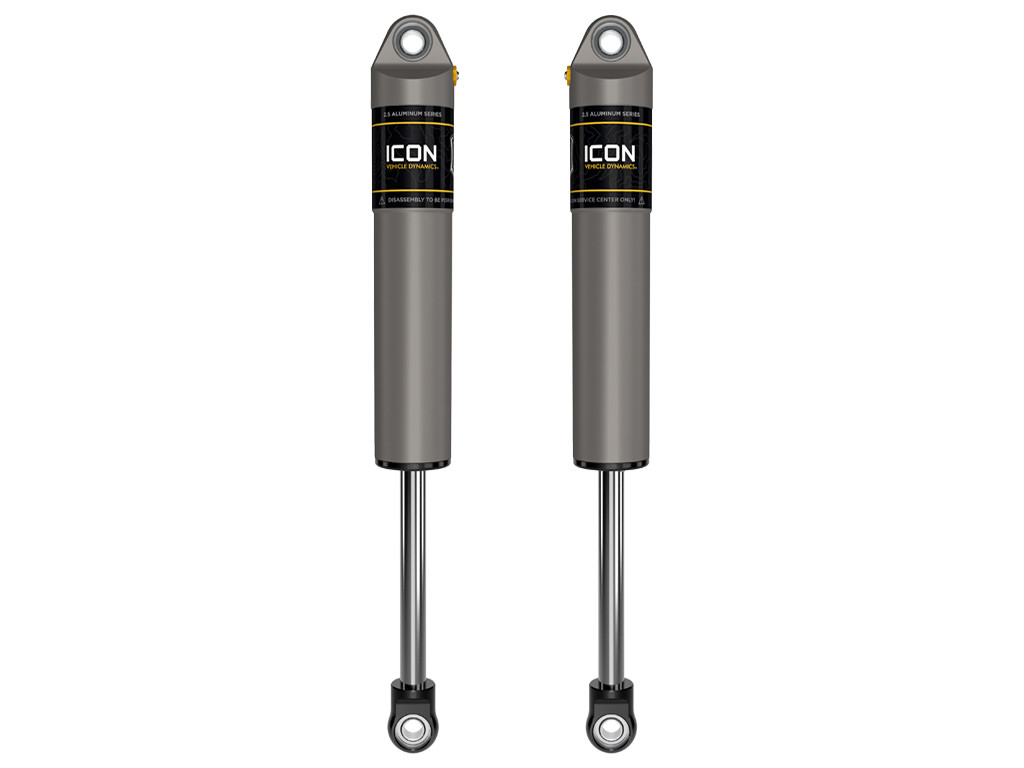

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.Features & Benefits:
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100% Revalveable
- Nitrogen charged monotube design with internal reservoir
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 6061 aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- 100% Rebuildable
Associated Comments:
- APPLICATION NOTE #3: Will not fit F-350 cab & chassis models
- APPLICATION NOTE #150: Shocks are fully serviceable
- TECH NOTE: Compatible with 3-6" of rear lift over stock
Additional Attributes:
- GTIN: 00840103402475
- 30: Yes
- 3390: Performance
- 359: 2.5
- 40: No
- 408: CENTER OF EYELET
- 409: CENTER OF EYELET
- 48: EYELET
- 49: EYELET
- 50: NO
- 51: Yes
- 905: 2.25
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: NO
- Reservoir Type: Internal
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Valving Type: Digressive
Extended Information:
- Emissions : 4
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 10.0000 x 9.0000 inches
I37601P_REVA
