Product Description

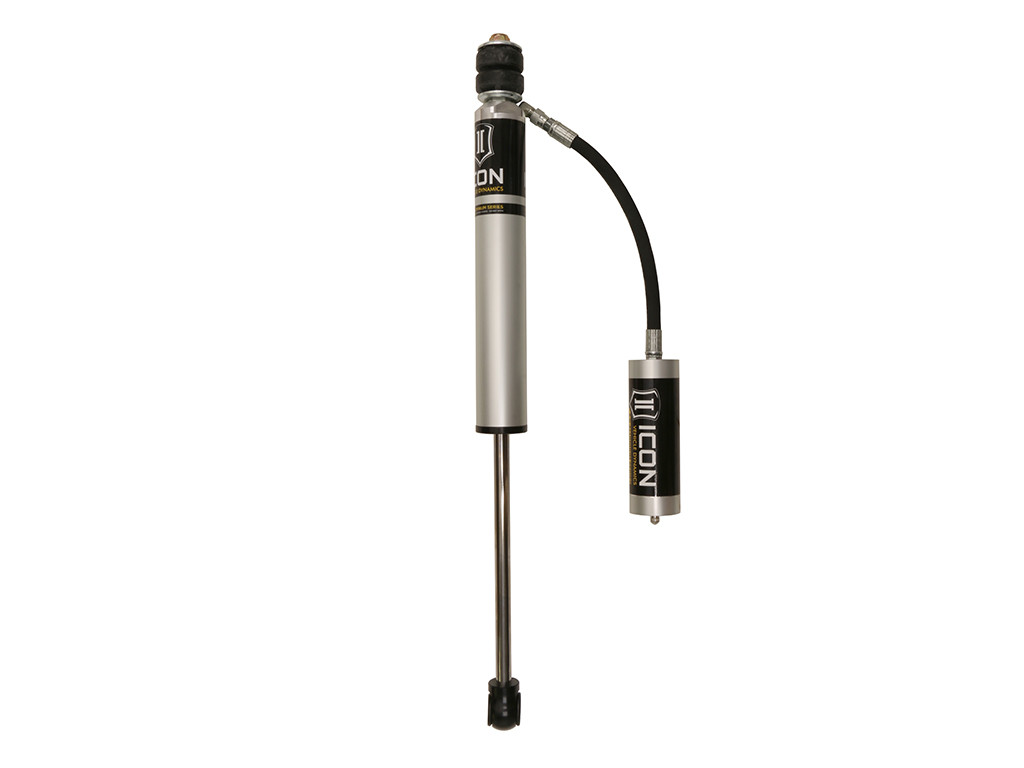

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.Features & Benefits:
- Nitrogen charged monotube design with remote reservoir
- 100% revalveable
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Application-specific reservoir mounting hardware
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Associated Comments:
- TECH NOTE: Bumpstop height must be increase my minimum of .75" or damage to shocks and/or shock mounts may occur.
- TECH NOTE: Will not fit 2005-2015 5-Lug 2WD Toyota Tacoma.
Additional Attributes:
- GTIN: 00840103403199
- 10526: Digressive
- 10528: No
- 10535: 3
- 1183: .625
- 1385: Gray
- 17: Light Grey
- 200: Anodized
- 2329: Aluminum
- 30: Yes
- 3065: 2
- 3085: Single Tube
- 3390: Performance
- 408: Center of Eylet
- 409: Shoulder of Stem
- 48: Eyelet
- 49: Stem
- 50: Yes
- 51: Yes
- 5126: Gray
- 52: 2
- 621: Aluminum
- 8703: Yes
- 9388: Rubber
- 9476: Yes
- 9783: No
- 9792: No
- 9908: Yes
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable: No
- Bore Diameter: 1.75
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- California Prop 65 Warning: Yes
- Cylinder Finish: Anodized
- Damping Type: Oil
- Dust Boot Included: Yes
- External Reservoir: Yes
- Material: Aluminum
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 0.625
- Shaft Material: Chrome
- Suspension Type: Spring
Extended Information:
- Emissions : 4
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 40.0000 x 7.0000 x 3.0000 inches
I56515R_REVA
