Product Description

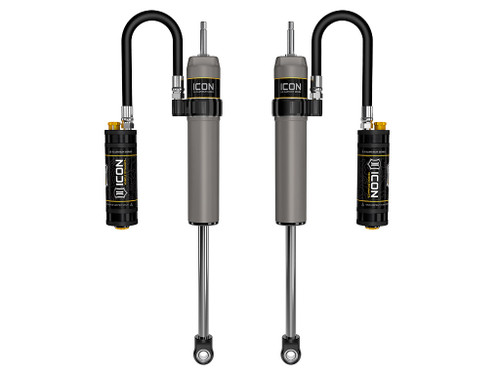

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.Features & Benefits:
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- 6061 aircraft grade aluminum CNC machined components
- 100% Rebuildable
- 100% Revalveable
- Nitrogen charged monotube design with remote reservoir
- PTFE lined spherical bearings and application specific mounting hardware
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 7/8” diameter induction hardened, chrome plated shock shaft
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Associated Comments:
- APPLICATION NOTE #1: Only fits 4WD models
- TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
- TECH NOTE: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion
- APPLICATION NOTE #150: Shocks are fully serviceable
- TECH NOTE: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
- TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
- TECH NOTE: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
- TECH NOTE: Compatible with 0-3" of front lift over stock of 2023-2025 F-250/F-350 4WD without Tremor package
- TECH NOTE: Compatible with 0-2” of front lift over stock of 2023-2025 F-250/F-350 4WD equipped with Tremor package
- TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD
- TECH NOTE: Compatible with 0-3” of front lift over stock of 2023-2025 F-450 4WD
Additional Attributes:
- GTIN: 00840103405926
- 30: Yes
- 3390: Performance
- 359: 2.5
- 40: NO
- 408: Center of Eylet
- 409: Shoulder of Stem
- 48: EYELET
- 49: Stem
- 50: NO
- 51: Yes
- 905: 2.25
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Reservoir Type: Remote
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Valving Type: Digressive
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 15.0000 x 9.0000 inches
I67800P_REVD
