Product Description

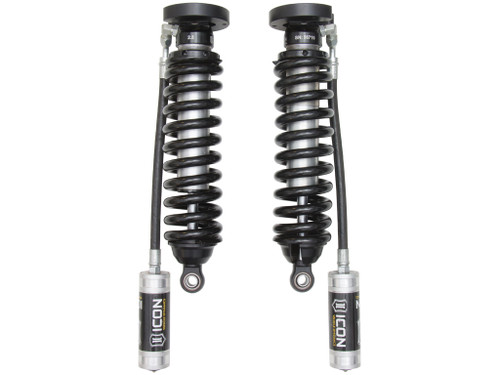

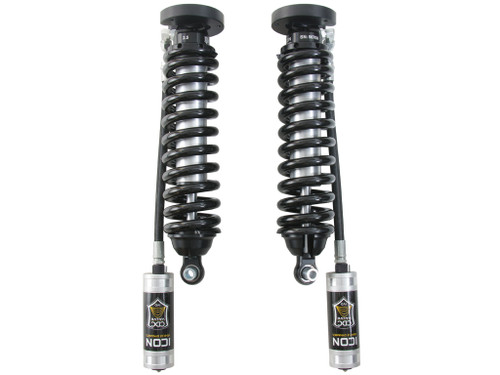

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2016-2023 Nissan Titan XD. These adjustable coilovers allow up to 2.5-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Nissan Titan XD.Features & Benefits:
- Approximately 32% increased front wheel travel and improved ride quality over stock
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 2.5-3" of front lift height adjustment
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33 x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Additional Attributes:
- GTIN: 00840103406701
- 10107: 1150
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10535: 3
- 2064: Steel
- 2329: Steel
- 306: Yes
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Adjustable Damping: Yes
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 16.03
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Extended Length: 20.98
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 2.5
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 4.96
- Upper Mount Type: MOUNT PLATE
- Valving Type: Digressive
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
