Product Description

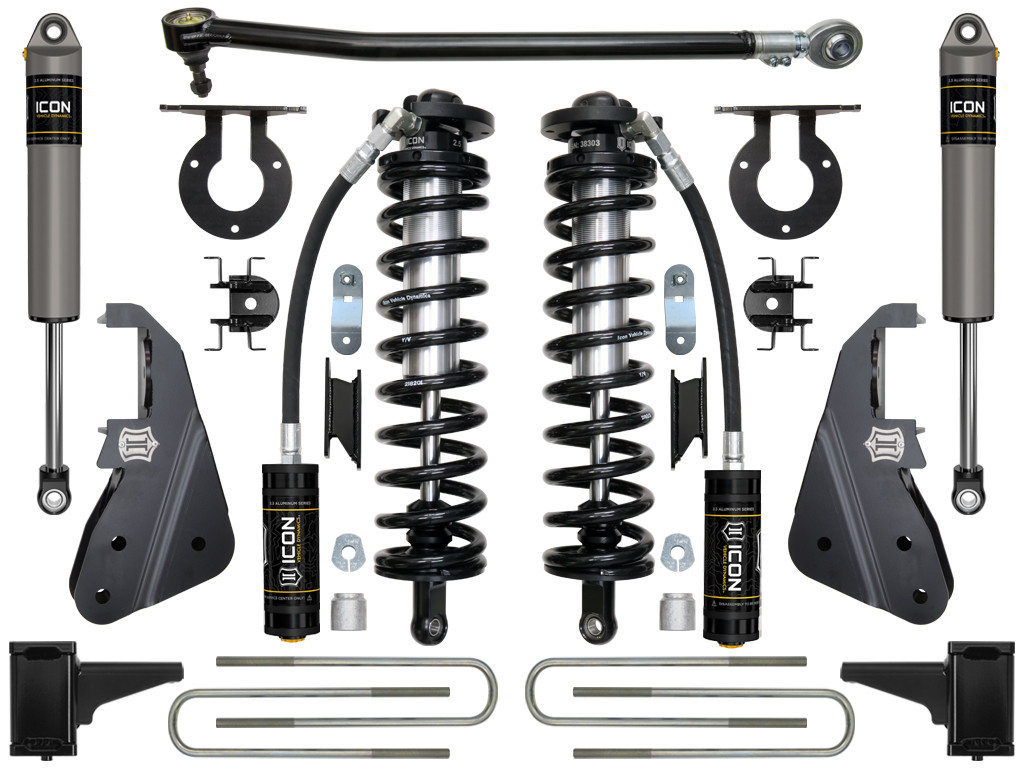

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.Features & Benefits:
- Bolt-in system fits in OE coil bucket location
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS
- TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
- TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
- TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
- TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
- Ships in multiple boxes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
Additional Attributes:
- GTIN: 00840103418483
- 2064: Steel
- 2371: NO
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 5.5
- 7325: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- California Prop 65 Warning: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 10.0000 inches
I64055_REVB
