Product Description

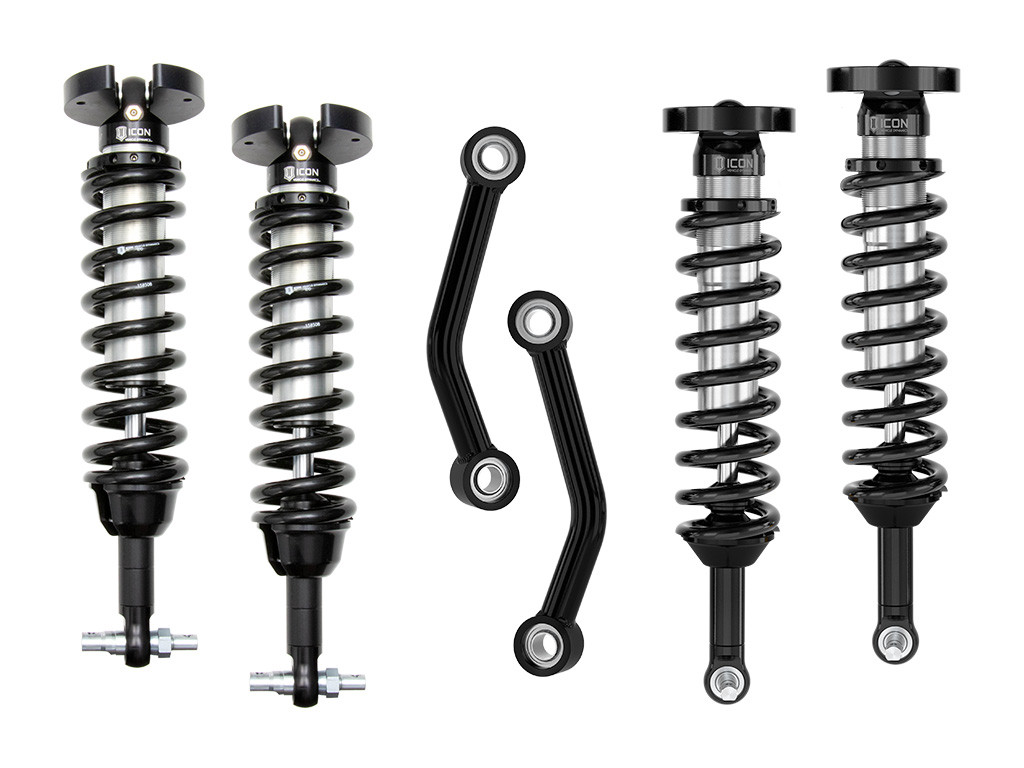

ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the vehicle platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned front and rear 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 2.5-3.25” of front lift and 3-4” of rear lift over stock for an aggressive stance and allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series coilover shocks feature a vehicle-specific valving that balances the performance of the truck from front to rear. The system also includes fabricated rear toe links for proper rear-end alignment at the new, taller ride heights, ensuring optimal handling. Additionally, ICON offers the necessary components to make this system compatible with all submodels and configurations that these vehicles are offered from the manufacturer, including those equipped with Magnetic Ride control and/or Adaptive Air Ride suspension. Features like these make the ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL Stage 1 suspension system an excellent choice for those drivers looking to enhance the capabilities of their SUV on the road as well as in the dirt.Features & Benefits:
- Adjustable front coilovers provide 2.5-3.25” of front lift height
- Shocks are fully rebuildable and re-tunable
- Adjustable rear coilovers provide 3-4” of rear lift height
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 20% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- 2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8" shafts
- Internal nitrogen reservoirs ensure consistent performance under hard use
- Fabricated rear toe links allow for proper rear end alignment with taller ride height
- FK Rod End bearings provide extended longevity and minimal deflection
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- TECH NOTE: Most SUV submodels equipped with gasoline engines will have front lift height range of 2.5-3.25" over stock
- TECH NOTE: Most SUV submodels equipped with diesel engines will have front lift height range of 2-2.75" over stock
- TECH NOTE: Most Tahoe/Yukon submodels will have rear lift height range of 3-4" over stock
- TECH NOTE: Most Suburban/Yukon XL submodels will have rear lift height range of 2.5-3.5" over stock
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33"x12.50" (Larger tires may fit but fender trimming and modifications may be required)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension
- APPLICATION NOTE #162: Not compatible with factory air ride equipped vehicles
Additional Attributes:
- GTIN: 00840103429991
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 3.25
- 7325: 2
- 7326: 2
- 9270: Linear
- 9271: Linear
- Active or Passive Suspension: Passive
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Adjustable Damping: No
- California Prop 65 Warning: Yes
- Maximum Lift Front: 3.25
- Maximum Lift Rear: 4
- Minimum Lift Front: 2
- Minimum Lift Rear: 2.5
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33"x12.50" (Larger tires may fit but fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Internal
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
