Product Description

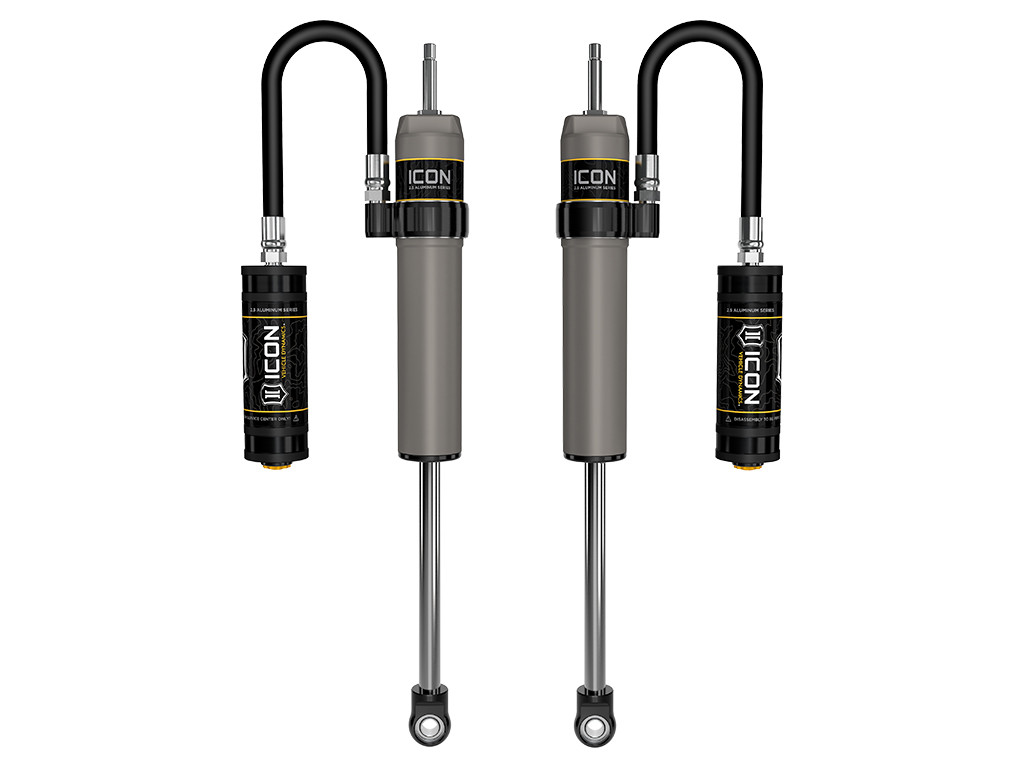

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. Remoyte reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.Features & Benefits:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Fully rebuildable and retunable
- Nitrogen charged monotube design with remote reservoir
- Remote reservoirs maintain cooler operating temperatures during extended off-road use and allow for longer suspension travel
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Associated Comments:
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #150: Shocks are fully serviceable
- TECH NOTE: Optimized length for pairing with ICON 4.5" lift coil springs
- TECH NOTE: Compatible with 4-6" of front lift over stock on 2023-2025 Super Duty models without Tremor package.
- TECH NOTE: Compatible with 3-5" of front lift over stock on 2023-2025 Super Duty models equipped with Tremor package.
- TECH NOTE: Can be installed as secondary shocks in OE location with ICON 4-6" lift coilover conversions. Part number 611003 will also be required.
Additional Attributes:
- GTIN: 00840103427867
- 30: Yes
- 3390: Performance
- 359: 2.5
- 40: No
- 408: Center of Eylet
- 409: Shoulder of Stem
- 48: EYELET
- 49: Stem
- 50: NO
- 51: Yes
- 905: 2.25
- 9783: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Cylinder Color: Gray
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Damping Type: Oil
- External Reservoir: Yes
- Reservoir Type: Remote
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Valving Type: Digressive
Extended Information:
- Emissions : 4
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 39.0000 x 15.0000 x 9.0000 inches
