Product Description

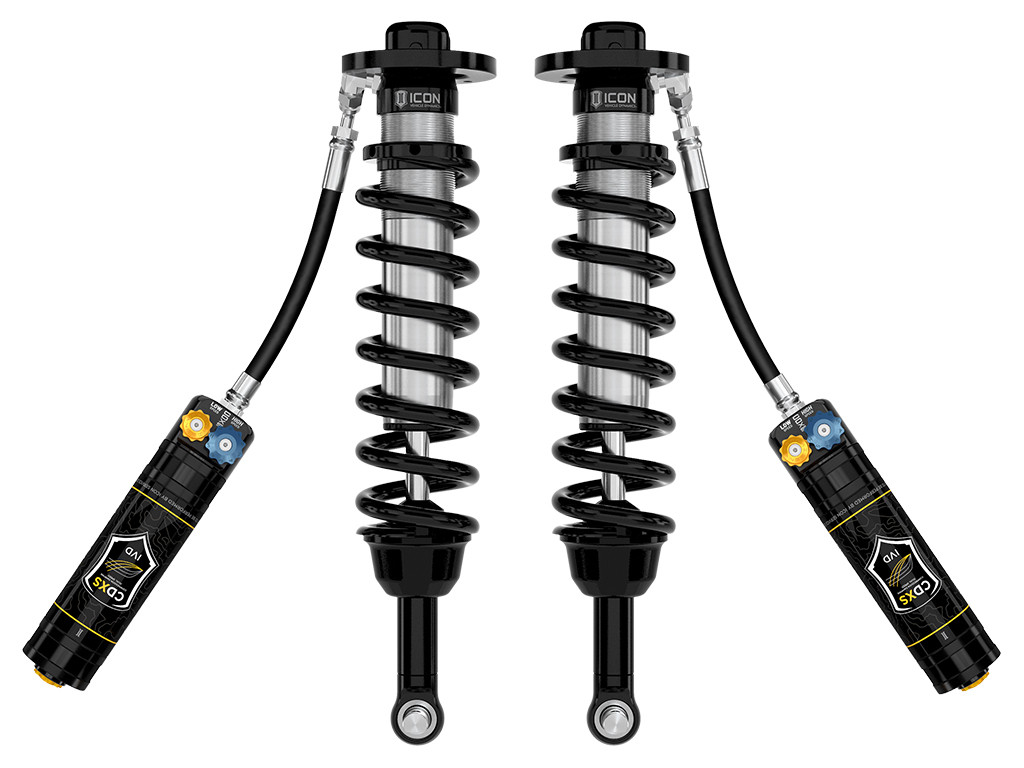

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDXS front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with 2.5 Aluminum Series CDXS rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.Features & Benefits:
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Fully rebuildable and re-tunable
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with remote reservoirs offer increased heat capacity and improved cooling for consistent performance
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
Associated Comments:
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
- APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
- Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Additional Attributes:
- GTIN: 00840103435190
- 10107: 550
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10535: 3
- 2064: Steel
- 2329: Steel
- 306: Yes
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Body Diameter: 2.5
- Boot Included: No
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 19.2
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Dual Speed/Manual
- Damping Type: Oil
- Dust Shield: No
- Extended Length: 24.85
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 1.25
- OEM Wheels & Tires Fitment: Yes
- Reservoir Style: Remote
- Self-Leveling: No
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eyelet
- Spring Rate Type: Linear
- Travel Length: 5.65
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
I58795X_REVA
