Product Description

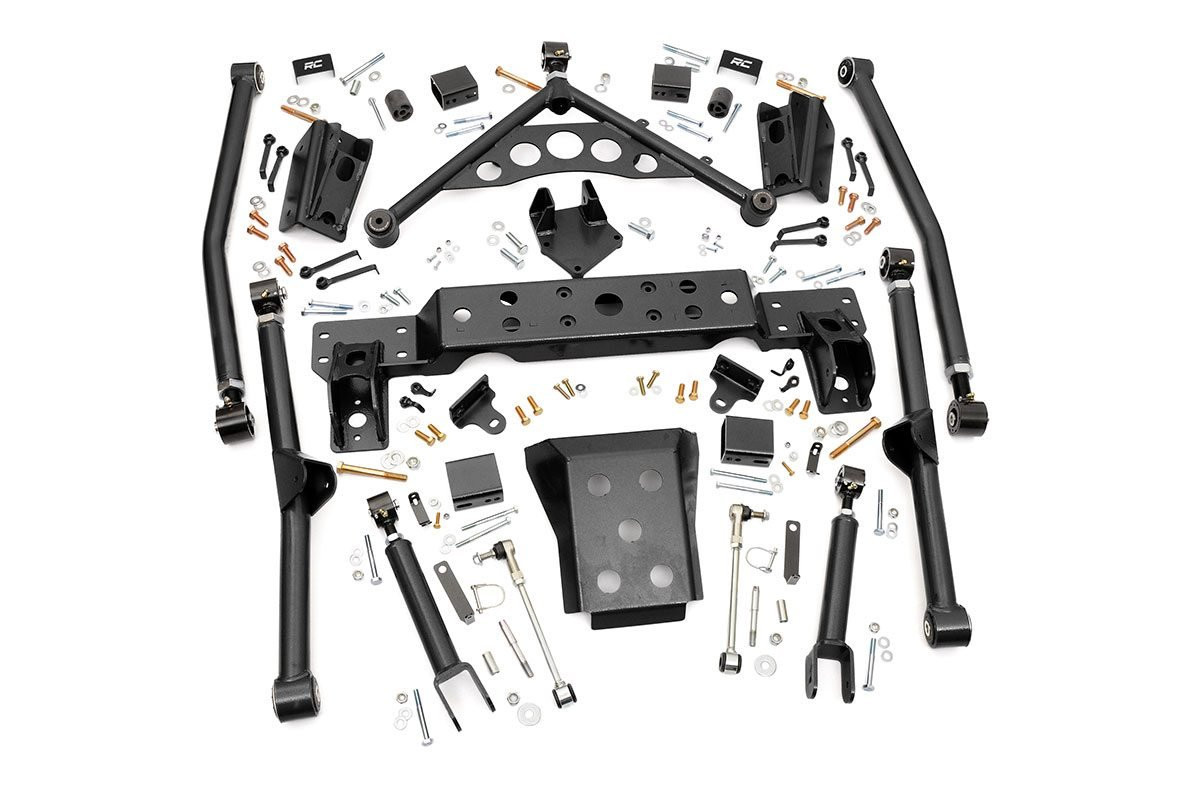

The long awaited WJ 4-inch Longarm Upgrade Kit is a comprehensive package including everything needed for a great suspension upgrade while maintaining the vehicle's crucial center of gravity. The kit includes adjustable high-clearance X-Flex upper and lower control arms with durable rubber bushings, featuringX-Flex joints. The kit also includes 1/4-inch thick steel crossmember, skid plate and sway bar disconnects. This Longarm Upgrade Kit is a total solution comprised of top-notch components designed for the avid off-roader who wants the most out of their WJ. This top of the line kit focuses on improving off-road handling and articulation while preventing binding and rear steer. This kit features high-clearance components with a front 4-link and rear y-link control arm design. This promotes extreme flex while keeping pinion angles optimized. Utilizing adjustable components, this kit can also accommodate future modifications.Features & Benefits:
- Aggressive appearance
- Upper joints pivot up to 20 degrees.
- Lower joints pivot up to 35 degrees.
- Increased ground clearance
- HD 0.25" thick crossmember
- Lower control arms feature high clearance design
- Extreme travel long arms keep optimum alignment and give optimum articulation.
- X-Flex control arm features:
- durable OEM style rubber bushings.
- Flex joints feature a massive 2.5" diameter body and 1.25" thread.
- Fully greaseable.
Associated Comments:
- Does NOT fit AWD models. Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft
Additional Attributes:
- GTIN: 00843030124335
- Front Components: Adjustable upper control arms/Adjustable lower control arms/Crossmember/Transfer case skid plate/Sway-bar quick disconnects/Bumpstop brackets/Brake line brackets/Hardware
- Installation Time: 8-9 hours
- Rear Components: Adjustable y-link upper control arm/Adjustable lower control arms/Long arm frame brackets/Long arm axle mount/Sway-bar brackets/Hardware
- Shipping Group: No Restrictions
- Ships in Multiple Boxes: Y
- UTV Product: N
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: x x inches
