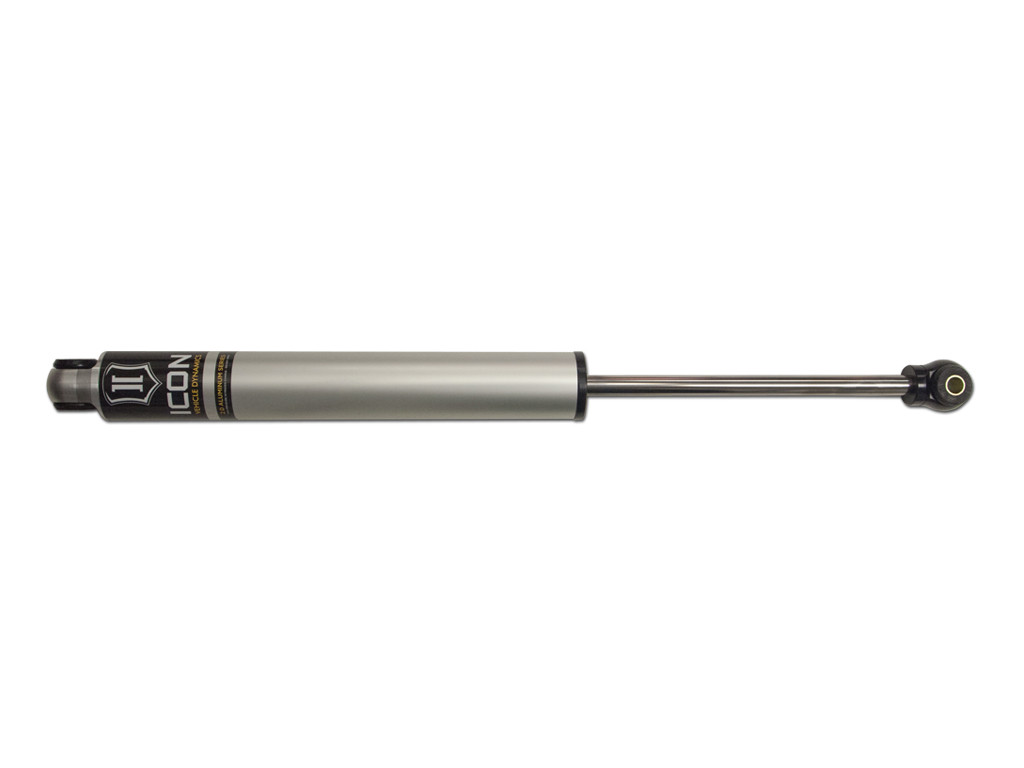

Product Description
ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable.Features & Benefits:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range.
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Associated Comments:
- TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle.
- TECH NOTE: Lower nitrogen pressure intended for single stabilizer applications. For dual opposing applications, consider part number 36511.
- EXTENDED LENGTH: 22.70"
- COMPRESSED LENGTH: 14.25"
- SHAFT TRAVEL: 8.45"
- MOUNTING DIMENSIONS: Upper/lower eyelets for 1.5" width between tabs and .5" diameter bolt
Additional Attributes:
- GTIN: 00840103402017
- 107: 14.25
- 17: Black
- 222: Chrome
- 2327: 2
- 2329: Aluminum
- 3390: Performance
- 37: 22.7
- 48: Eyelet
- 49: Eyelet
- 502: 0.625
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
- Adjustable Damping: No
- California Prop 65 Warning: Yes
- Damping Type: Oil
- Mounting Bracket Included: No
- Service Parts: 202002 - 2.0 IFP REBUILD KIT
- Shock Travel Length: 8.45
- Steering Stabilizer Configuration: Single
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 40.0000 x 3.0000 x 3.0000 inches
